An angle stop is a space-saving, L-shaped shutoff valve where a water line connects to a fixture. These valves are commonly found beneath sinks, behind toilets, and near appliance hookups. When a Plumbing Angle Stop works properly, it allows one fixture to be shut off without interrupting water to the whole home. That means repairs can be completed with less disruption.

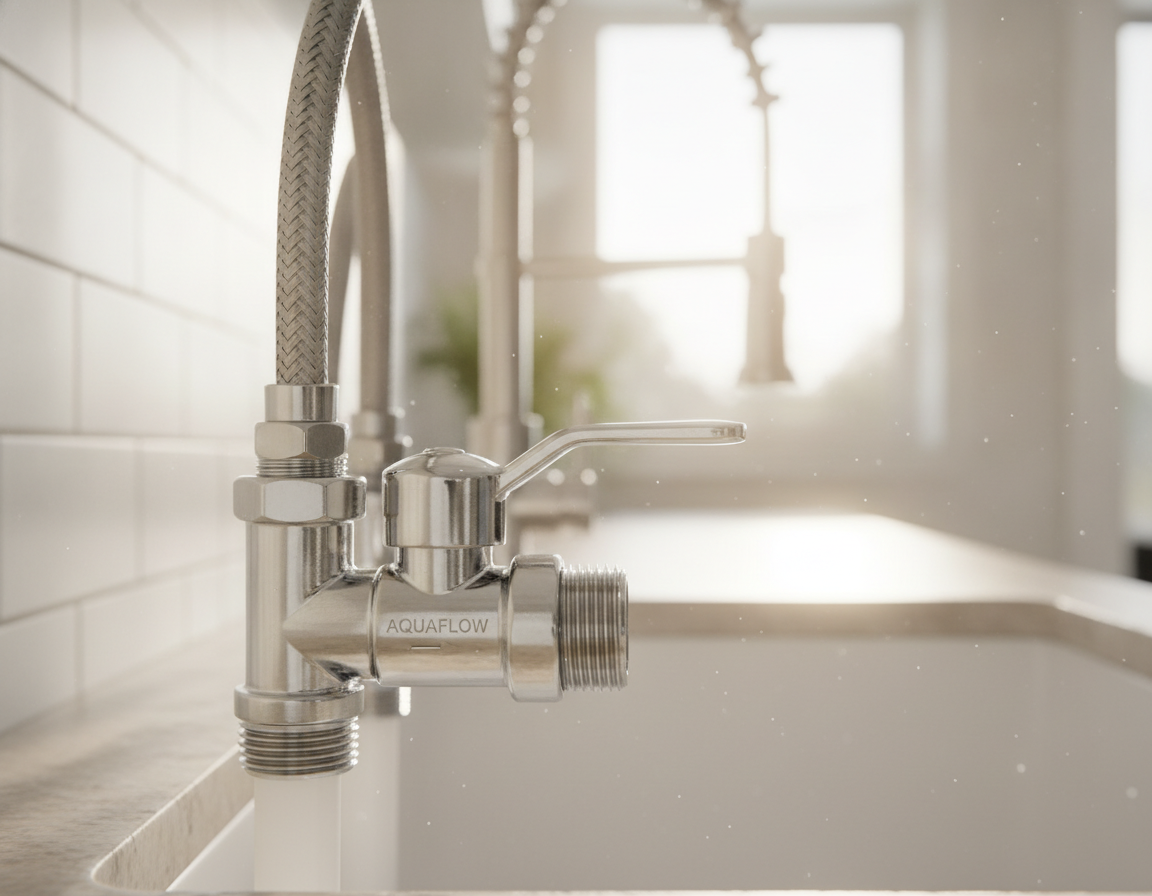

What Is An Angle Stop
Most home angle stops are 3–6 inches tall and turn water 90 degrees toward the fixture. Modern installations favor quarter-turn ball-style Angle Stop Valve designs. These are quicker to operate and tend to last longer. When an angle stop becomes stiff, replacement can limit water-damage risk and make future service easier.
Important Points
- A Plumbing Angle Stop allows a single fixture to be isolated while the rest of the home stays supplied.
- Angle Stops Plumbing are commonly installed under sinks and behind toilets for easy access.
- An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
- Quarter-turn designs are now preferred for reliability and faster shutoff.
- Any valve that corrodes should be replaced before it causes larger water problems.
What An Angle Stop Is And Why It Matters
The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls flow to one fixture, allowing repairs or replacements without shutting off the main supply. Homeowners, plumbers, and building inspectors rely on it to keep repairs quick and contained.
Angle Stop Definition Explained
An angle stop is a right-angle valve installed on the supply line feeding a fixture. It comes in different designs, including Angle Stop Valves with multi-turn stems or quarter-turn ball internals. A Plumbing Angle Stop is designed to fit neatly in tight spots such as under-sink cabinets and behind toilets.
Common Angle Stop Locations In A Home
Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They are usually positioned near the rear of the cabinet where the water line comes through. Toilet stops mount on the wall behind the tank. You will also see angle stops at appliance connections such as dishwashers, ice makers, washing machines, and near some water heaters for cold-water shutoff.
Practical Benefits For Homeowners
One main benefit of an Angle Valve For Sink is isolation. A working Plumbing Angle Stop lets you shut off one fixture to replace a faucet or repair a leak. This helps prevent minor leaks from becoming major water-damage events and keeps household disruption lower.
Convenience is another key benefit. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Periodic exercising of the valve keeps it operable. Upgrading old multi-turn stops to modern quarter-turn Angle Stop Valve models speeds emergency responses and lowers stress.
Difference Between Angle Stop And Angle Seat Valve
Household angle stops serve low-pressure potable water lines. They are suited to sinks, toilets, and everyday household appliances. The industrial Angle Seat Valve is different. It is built for higher-pressure, higher-temperature, or corrosive applications in steam, chemical, and HVAC systems. Angle seat valves use pistons and durable metal seats for tough service, while an Angle Stop is a simpler fixture-level shutoff for residential plumbing.
Types Of Angle Stops And How To Choose One
Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. The following overview helps homeowners and plumbers choose Plumbing Angle Stops that are code-conscious.
Angle Stop Materials
Brass is widely used as the standard material for Angle Stops. Because it resists corrosion and may last 10–20 years, brass is a strong choice for Quarter-Turn Angle Stops. Stainless steel bodies are useful in humid basements, coastal locations, and exposed areas where rust resistance matters. Plastic-bodied stops cost less but are less durable and may degrade in hot-water loops. Always choose a Lead-Free Angle Stop for potable water in the United States to meet federal and state standards.
Operation Styles
Quarter-turn valves typically use a ball or disc mechanism and operate with one 90-degree turn. They provide quick shutoff, low torque, and resistance to mineral buildup, making them a top choice for frequent use and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They provide finer flow control but are more likely to leak or stick in older homes.
Common Connection Styles
Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They install without heat and are popular in remodels. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves attach to male adapters and usually require PTFE tape or pipe-thread sealant. Push-Fit Angle Stop models, including SharkBite-style options, can slide onto copper, CPVC, or PEX without special tools. Push-fit designs are handy for DIY jobs and cramped spaces, while Compression Angle Stop fittings are common where future removal or rework may be needed.
Special Features
Some Angle Stop Valve designs include a built-in Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. A Lead-Free Angle Stop marking on the body helps confirm the valve is intended for potable-water use. Choose a valve that matches the pipe material, connection type, and service conditions to reduce premature failure.
Plumbing Angle Stops
Plumbing angle stops control water flow to fixtures with a right-angle design. The choice of size and style affects both function and code compliance. Below, we cover common markings, placement, potable-water standards, and modern standardization trends.
Common Sizes And Reading Valve Markings
In homes, inlet fittings are usually 1/2 inch nominal, while fixture outlets are often 3/8 inch compression. Valve labels may show a format like 1/2 x 3/8 or 1/2” MIP x 3/8” OD. This identifies the inlet and outlet sizes. Some labels specify 3/8 COMP for compression outlets. Make sure the inlet matches your supply pipe, whether it is 1/2 FIP, 1/2 MIP, or 1/2 sweat.
Where Angle Stops Are Placed
Angle stops are usually installed under kitchen sinks, beneath bathroom vanities, and behind toilets. They are also used for appliances such as water heaters, dishwashers, ice makers, and washing machines. Under-sink valves are commonly located at the rear of cabinets, while toilet stops are generally visible near the wall behind the tank.
Lead-Free Code Notes For Drinking Water
In the United States, valves used on drinking-water lines must comply with lead-free requirements for wetted surfaces. Choose a Lead-Free Angle Stop that has clear markings, documentation, or certification details. Contractors should follow local plumbing codes and provide the appropriate certifications, testing information, and warranty support.
Industry Trends And Recommended Standard
Modern Angle Stops often use quarter-turn ball designs. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Experts often recommend a brass 1/2 x 3/8 angle stop for sinks and toilets for easier stocking and maintenance. Models with arrestors and other potable-water protection features are increasingly common in new installations.
Selection Checklist For Angle Stops
- Confirm Valve Markings for inlet type and outlet size before purchase.
- Make sure the Angle Valve For Sink or toilet stop matches the supply hose, fixture threads, and tank connection.
- Specify a Lead-Free Angle Stop when the line serves potable water.
- For many homes, standardizing on Quarter-Turn Angle Stop 1/2 x 3/8 valves can simplify maintenance and improve reliability.
How To Install And Replace Angle Stops Safely
Before working on a plumbing angle stop, decide whether the main water supply needs to be shut off. Only shut the main if the existing stop will not close fully, is damaged, or is frozen. For many under-sink jobs, the line can be isolated at the fixture valve itself. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.
Before starting, gather all needed tools and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit work, use the manufacturer’s push-fit angle stop and a PEX stiffener where needed; for compression jobs, keep spare ferrules and nuts available. Penetrating oil and a heat shield help with stubborn fittings and sweat connections.
Tool Checklist:
- Two-wrench setup for secure tightening
- Pipe cutter and deburring tool
- PTFE tape plus marking pen
- Push-fit valve and required stiffener
- Spare ferrules, nuts, penetrating oil, and towels
Each connection type requires its own installation method. For a compression connection, slide the nut and ferrule onto the pipe and seat the valve squarely against the pipe shoulder. Start the nut by hand, then tighten another 1/4–1/2 turn with a wrench. Use a backup wrench on the valve body or outlet so the stub-out does not twist.
For push-fit installation, cut the pipe square and deburr it. Mark the insertion depth and push the valve straight on to the depth mark. Tug lightly to confirm the fitting locked. Push-fit angle stop fittings work on copper, CPVC, and PEX; use a stiffener for PEX where required.
Sweat angle stop connections need careful preparation and heat control. Remove or protect nearby seals and internals, clean and flux the pipe and valve cup, heat the joint evenly, and solder. After cooling, wipe the joint to remove residue. Use a heat shield or remove seals to prevent damage during sweating.
For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten the valve until it is sealed and aligned, connect the supply line, and test with water slowly.
After installation, turn the water back on slowly while watching every joint. Open the angle stop and fixture gradually. Use a dry towel or tissue to reveal small weeps around fittings. Operate the valve, let pressure stabilize, and inspect again for slow leaks.
Be aware of common mistakes that can lead to failures. Over-tightened compression nuts may deform ferrules and create leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Do not solder near heat-sensitive seals unless they are protected or removed. Avoid twisting push-fit valves during insertion and always follow the manufacturer’s insertion-depth marks.
Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keep spare parts nearby and follow torque guidance for each valve type to reduce callbacks.
Common Problems And Quick Repairs For Angle Stops
Small leaks, stuck handles, and stiff valves are common angle stop problems for homeowners. A quick assessment shows whether a simple fix is enough or a full replacement is needed for long-term reliability.
Leaking At The Stem Or Handle
In older multi-turn valves, seepage at the stem usually starts with a loose packing nut. Tightening the nut about 1/8 turn with an adjustable wrench can often solve the issue. If the leak continues, the internal washer or O-ring may be worn and replacement may be required.
Frozen Or Stuck Valves
Stuck angle stops often result from Mineral Buildup or rust. Applying a penetrating oil such as WD-40 and allowing it to sit for about ten minutes can sometimes loosen the valve. A gentle back-and-forth motion may help break the handle free. If it remains stuck or the handle is brittle, replace the stop to avoid a flood.
Compression Joint Weeps
A persistent leak from a compression joint usually indicates a misaligned ferrule or damaged pipe end. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is worn, cut back the pipe, install a new ferrule, and tighten carefully to prevent more leaks.
When Replacement Makes Sense
Homes with frequent leaks, frozen handles, visible corrosion, or valves over ten years old should consider modern angle stops. A Quarter-Turn Upgrade to a ball-style valve can improve shutoff speed, resist Mineral Buildup, and make emergency service more dependable.
Fast Repair Checklist
- For stem drips, tighten the packing nut slightly and recheck.
- Use Penetrating Oil and gentle motion for stuck valves.
- Reseat the ferrule or cut back the pipe for compression leaks.
- Upgrade to quarter-turn stops when valves freeze or leak repeatedly.
Turning angle stops occasionally and inspecting for corrosion can reveal problems before they become emergencies. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.
Final Thoughts
This Plumbing Angle Stops Guide shows why small fixture shutoff valves are so important. They let homeowners shut off one fixture without disrupting water to the whole house. Selecting the proper material, valve operation, and connection style makes future repair work simpler. It also reduces the risk of water damage during upgrades.
For strong everyday performance, many professionals prefer lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors may be added where quick-closing fixtures or water hammer create noise and stress. Homeowners should periodically test valves and replace Plumbing Angle Stops that leak, stick, or corrode. Depending on valve type and job difficulty, parts may range from $6 to $60, while professional installation may cost $75 to $200.
If installation is uncertain, consulting a licensed plumber is wise. A plumber can ensure code compliance and provide warranty-backed work. This protects fixtures and simplifies maintenance. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
